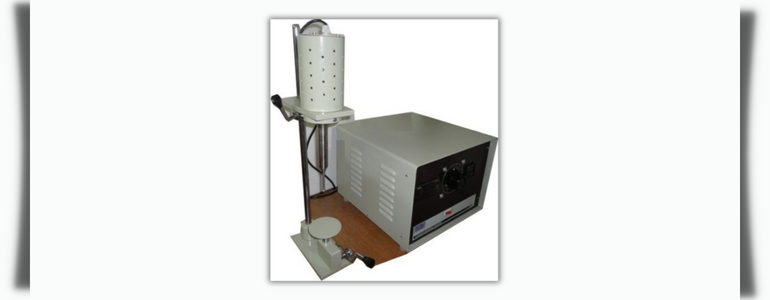

Ultrasonic Probe Sonicator
Introducing our top-notch Ultrasonic Probe Sonicator, crafted to the highest standards, and made available for both domestic and international customers in Mumbai, India. Our Ultrasonic Probe Sonicator stands out in its ability to disintegrate a variety of cells, bacteria, spores, and tissues. With the capability to prepare emulsions down to 1/100 of a micron, it excels in tasks such as homogenizing immiscible liquids, accelerating enzymatic and chemical reactions, stimulating bacterial activity, dispersing solids in liquids, and degassing liquids. Trust in the quality and versatility of our Ultrasonic Probe Sonicator for various applications in your laboratory or industrial processes.
Ultrasonic Processors Consist Of:
- Ultrasonic Generator to produced high Frequency Electrical Energy operating at a frequency of 20KHZ and Ultrasonic Power of 120W
- S.S. Velocity Horn fitted with PZT Crystals (Transducer Elements)
The Velocity Horn assembly converts the electrical high frequency energy fed from the Ultrasonic generator to mechanical vibrations at the rate of applied electrical frequency. The amplitude of these mechanical vibrations is magnified by this Velocity Horn. This Velocity Horn is used for the processing application.
Features of Ultrasonic Probe Processor :
- Low transducer losses permit maximum cleaning action
- Modular generator for easier modification / Servicing
- Rugged and easy to clean stainless steel housing
- Extensively protected electronics circuits for longer and safe operation
- Frequency 22 + 3 KHz.
- Input voltage range of 170AC-270 AC.50 Hz
Applications of Probe Sonicator :
| Formulation | Tissue Homogenizers | Stimulate Bacterial | Homogenizer Processor |
|---|---|---|---|
| Pharma | Dissolve Powders | Deaglomerate | Ultrasonic Homogenize |
| R & D Lab | Probe Sonicators | Activity | Emulsify Cosmetics |
| Sonication Cell | Emulsify Liposomes | Ultra Sonicators | Extract DNA / RNA |
| De-gas Liquids | Sonication of Bacteria | Disperse Solids | Prepare Emulsions |
| Reactions | Sonication Cell Lysis | Extract Proteins | Accelerate Chemical |
| Reactions | Accelerate Enzymatic | Dissolve Tablets | Immiscible Liquids |
Ranges of Ultrasonic Homogenizer / Probe Processor / Probe Sonicator :
| General Specifications | LeelaSonic 125 UPP | LeelaSonic 250 UPP | LeelaSonic 500 UPP | LeelaSonic 750 UPP | LeelaSonic 1000 UPP |
|---|---|---|---|---|---|
| In Put Power Supply | 230 V AC | 230 V AC | 230 V AC | 230 V AC | 230 V AC |
| Ultrasonic Power | 125 W | 250 W | 500 W | 750 W | 1000 W |
| Horn Dia | 5 mm & 10mm | 10 mm & 20mm | 15 mm & 25mm | 15 mm & 30mm | 15 mm & 40mm |
| Timer | 0 - 99 min | 0 - 99 min | 0 - 99 min | 0 - 99 min | 0 - 99 min |
