Ultrasonic Filter Cleaner
We are the manufacturer of the best quality ultrasonic filter cleaning machine in India. Our filter cleaners can be much more effective and less damaging than using a brush or high-velocity water sprays cleaning systems. These manual cleaning systems are not able to access all filters surfaces and may in fact damage the filters. Its also time consuming and requires more manpower. An ultrasonic filter cleaner will also reduce the filter cleaning time as compared to the time required for manually cleaning.

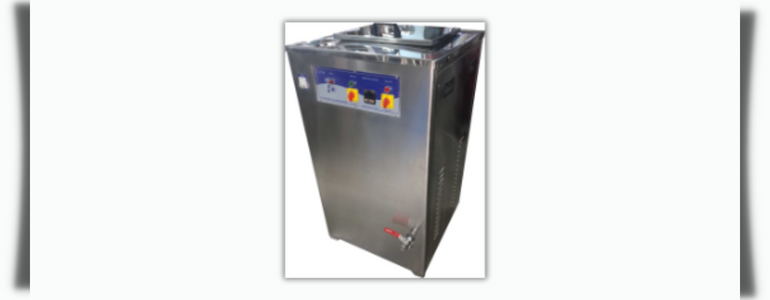

We've innovated further by introducing a rotating filter cleaning machine designed specifically for industrial cartridge filters. In this cutting-edge machine, a basket rotates at low RPM in a hot alkaline solution, harnessing the power of ultrasonic waves.
System Design Features:
- Cleaning, Rinsing, and Compressed Air Drying in a Single Cleaning System.
- All components are easily accessed for maintenance operations.
- Available with Pulse Sweep Energy.
- SS control enclosure provides ease of operation and less corrosion.
- Auto Degassing.
- Inbuilt Digital Timer & Digital temperature controller.
System Design Features:
- Labour cost is substantially reduced.
- Increase the filter life.
- Reduced filter damage from cleaning.
- Reduced wastages.
- Environmentally friendly.
- Easy to maintain system.
- MOSFET / IGBT Base technology saves power.
- Heater with Digital Temp. Controllers increase cleaning effect.
- Rust free stainless steel housing , easy to clean.
- Free lid & basket as per customer need.
Table Top Models :
| Model | Tank Size ( L X W X H ) | capacity liters |
|---|---|---|
| LeelaSonic - 50 | 9" X 5.5" X 4" | 2 |
| LeelaSonic - 100 | 12" X 6" X 4" | 4 |
| LeelaSonic - 150 | 12" X 6" X 6" | 6.5 |
| LeelaSonic - 250 | 12" X 9" X 6" | 10 |
| LeelaSonic - 500 | 18" X 12" X 6" | 20 |
Large Cleaner:
| Model | Tank Size ( L X W X H ) | capacity liters |
|---|---|---|
| LeelaSonic - 750 | 450 * 200 * 550 mm | 38 |
| LeelaSonic - 1000 | 400 * 400 * 650 mm | 75 |
| LeelaSonic - 1500 | 520 * 400 * 650 mm | 100 |
| LeelaSonic - 1750 | 600 X 320 X 650 mm | 125 |
Higher capacity also available as per customer requirement.
How do you clean SS wire mesh oil filters?
- Deep your filter in degreaser alkaline solution for 10 -15 min.
- Rinse the filter under tap water or by jet spray.
- Put the filter into an ultrasonic bath for 10 -15 min.
- Again rinse the filter under tap water or by jet spray.
- Compressed air is used to dry the filter after the rinsing process is complete.
Using Leela sonic ultrasonic cleaners you can thoroughly clean the filter. This will reduce your manpower in hours & number of people required for the filter cleaning process. While cleaning filters in ultrasonic cleaner you will not have to disassemble filters. It will also increase the life of the filter.
The Two-tank cleaning and rinsing machine designed for lower volumes of Filter are cleaned and rinsed manually by operators. A compressed-air Drying Wand is also included to permit operators to dry Filter after the rinsing process is completed. Two tank ultra sonic cleaning & rinsing machines are manufactured using the highest grade of materials available, and includes features such as stainless steel access panels, and Digital timers and digital temp. controller with heater to increase the efficiency of the alkaline solution. LeelaSonic Table Top Modules are used for small filters.
our Two-Tank Ultrasonic Cleaning and Rinsing Machine, meticulously designed for handling medium volumes of filters. This system allows operators to manually clean and rinse filters, with the added convenience of a compressed-air Drying Wand for post-rinsing drying. The ultrasonic cleaning process takes place in the first stainless steel tank, offering the option of Pulse Sweep Energy to enhance efficiency. The heated ultrasonic cleaning tank boasts a high-efficiency heater and a Digital Temperature Controller, ensuring precise temperature control with continuous display. An automatic digital timer stops the cleaning cycle upon completion.
Moving to the second stage, water rinsing is carried out. With only one rinse tank, this system is ideal for applications with lower volumes, minimizing detergent transfer from the cleaning to the rinsing tank. The machine features inlet and outlet ball valves for liquid fill and drainage. Our Two-Tank Ultrasonic Cleaning and Rinsing Machine is a comprehensive solution for effective filter maintenance.
Multistage ultrasonic filter cleaning machine as per customer requirements.
| First Stage : Ultrasonic Cleaners | Second Stage : Ringing Chambers | Third Stage : Drying Chambers |
