Ultrasonic Parts Cleaning Machine
Leela sonic is manufacturing and supplying ultrasonic cleaning equipments. Also provide after sales & support service supports for our cleaning equipment. We manufactured from the smallest bath to the largest PLC based automated multi bath system. These automated systems are a cost effective option for precision cleaning of parts. In many industries, the worry of cleaning industrial parts persists. Traditional methods involving hand scrubbing and brushing with cleaning solutions often result in time-consuming processes, manpower wastage, and inconsistent cleaning outcomes.
We manufacture Ultrasonic Cleaning Systems in highly controlled industrial environments. We have used the latest MOSFET / IGBT base technology to deliver the best quality Multi Stage cleaning systems. Moreover, Parts Cleaning Machine, offered by us, are easy to use and handle.
No more hand and mechanical brushing is needed to remove dust with grease, oil and residual polymer on components. These machines are used for cleaning industrial parts , nuts, bolts, engine parts, aircraft parts and hydraulic filters. Using our machines you can thoroughly clean the components.
System Design Features:
- Ultrasound cleaning, rinsing, and compressed air drying in a single cleaning system.
- All components are easily accessed for maintenance operations.
- Available with Pulse Sweep Energy.
- SS control enclosure provides ease of operation and less corrosion.
- Auto Degassing.
- Inbuilt Digital Timer & Digital temperature controller.
Ultrasonic Cleaning Equipments Range:
Small single and double baths systems are normally used for lower volume cleaning. Large single and multi bath aqueous based system used for large components or large volume.
Small bath capacities from 2 to 20 litres are used for PCB , watch , jewellery , surgical instruments and small parts of industries. These machines have Digital timer range 0 -99 and digital temperature controller range of ambient temperature to 80 degree C. bath and body material of construction is stainless steel. Wide range of frequency 25 khz, 33 khz , 40 khz
Applications of Multi Stage Ultrasonic Cleaning System:
| Model | Tank Size ( L X W X H ) | capacity liters |
|---|---|---|
| LeelaSonic - 50 | 9" X 5.5" X 4" | 2 |
| LeelaSonic - 100 | 12" X 6" X 4" | 4 |
| LeelaSonic - 150 | 12" X 6" X 6" | 6.5 |
| LeelaSonic - 250 | 12" X 9" X 6" | 10 |
| LeelaSonic - 500 | 18" X 12" X 6" | 20 |

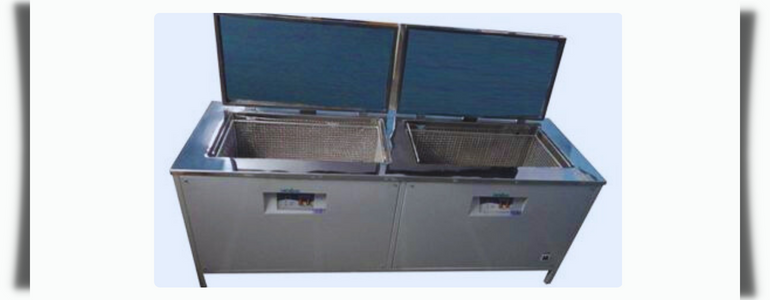

Large Ultrasonic Parts Cleaner:
| Model | Tank Size ( L X W X H ) | capacity liters |
|---|---|---|
| LeelaSonic - 600 | 500 * 300 * 250 mm | 38 |
| LeelaSonic - 1000 | 600 * 400 * 400 mm | 96 |
| LeelaSonic - 1500 | 750 * 400 * 400 mm | 120 |
| LeelaSonic - 2000 | 900 X 500 X 500 mm | 225 |
Multi stage industrial cleaning machine Details:
Parts Cleaning System as per customer requirements
| First Stage : Ultrasound Cleaners | Second Stage : Ringing Chambers | Third Stage : Drying Chambers |
Leela Sonic Cleaners are designed to clean nuts, bolts, pipes, machine parts, and exhaust manifolds effectively. They excel in reaching deep into intricate passages where thorough cleaning is essential. The generous capacity of these cleaners enables simultaneous cleaning of multiple parts.
In the aviation industry, dealing with carbon deposits can be quite a task for mechanics. Leela Sonic Washers are specifically crafted for cleaning aircraft parts. They not only efficiently eliminate carbon deposits but also significantly expedite the cleaning process. Importantly, this method is much safer compared to the use of previously employed toxic chemicals.
Industries often face challenges ensuring thorough cleanliness of their parts. Many still rely on manual scrubbing to remove residue, using brushes and cleaning solutions. This method is time-consuming, requires significant manpower, lacks consistency, and falls short of desired cleanliness standards.
LeelaSonic addresses these concerns by introducing Ultrasonic Cleaners designed for effective industrial part cleaning. Say goodbye to manual scrubbing and brushing to remove foreign particles such as grease, hydraulic oil, rust, and grime. The LeelaSonic Ultrasonic Cleaner ensures a thorough cleaning process without the need for disassembling parts.
By adopting LeelaSonic's ultrasonic cleaning technology, you can significantly reduce the hours and manpower required for the parts cleaning process. This not only enhances efficiency but also extends the lifespan of the parts being cleaned.
